220v Soft Starter
>

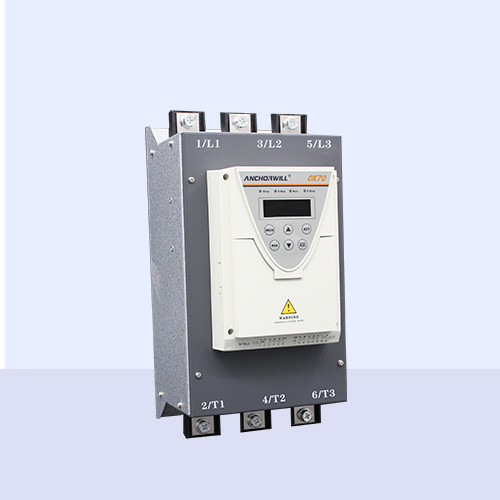

Motor 220v Soft Starter Squirrel Cage Bypass

Motor 220v Soft Starter Squirrel Cage Bypass

Product Details:
Place of Origin: China
Brand Name: Anchorwill
Certification: 3C
Model Number: CK70
Detail Information
Place of Origin:
China
Brand Name:
Anchorwill
Certification:
3C
Model Number:
CK70
Product Name:
220V Soft Starter
Applicable Standards:
GB14048.6-2016(IEC947-4-2)
Applicable Motor Type:
Squirrel-cage Three-phase Asynchronous Motors
Motor Power:
11A……1260A(5.5~630kW)
Control Mode:
1.Ramp Voltage 2.Ramp Current 3.Current Limit Mode
Display Unit:
LCD Display
Communication:
Integrated Communication Protocols
Protection And Monitoring:
Short-circuit, Over-voltage, Overload, Under-voltage, Phase Loss, Over-current, Temperature Protection
High Light:

High Light

Highlight:

220v motor soft starter

,

Motor soft Starter 220V

,

soft starter squirrel cage

Trading Information
Minimum Order Quantity:
1
Packaging Details:
Packing in wooden cases for export
Delivery Time:
1 - 10
Product Description

CK70 Built-In Bypass Soft Starter 220V Soft Starter

CK70 series intelligent soft starter with built-in bypass is a brand-new product optimized and launched on the basis of our CK60 economic soft starter.

Based on the CK60 economic soft starter, the CK70 series is a brand-new product optimized and launched, and its overall performance has been greatly improved to become the preferred product for high-performance drive control of general machinery.

It has become the preferred product for high-performance drive control of general-purpose machinery. The product adopts today's international advanced level of power electronics technology and microprocessor



Item Project Description
Applicable standards GB14048.6-2016(IEC947-4-2)
Applicable motor type Squirrel-cage three-phase asynchronous motors
Motor power 11A……1260A(5.5~630kW)
importation Control Voltage AC220V±15%;50Hz/60Hz;AC110V±15%
Rated Voltage AC380V±15%;50Hz/60Hz;660V±15%
Adjustable start time 1~120s adjustable
Adjustable stopping time 0~120s adjustable
control mode 1.Ramp voltage 2.Ramp current 3.Current limit mode
I/0 Logic Inputs 3 channels (X1~X3)
Analog Outputs 1 channel 4~20mA/0~10V
Relay Output 2 relay outputs
Run the command by typing Keyboard display unit setting, control terminal setting
RS485 communication given.
Communication Integrated communication protocols Standard Modbus protocol, 1 channel
Display Unit LCD display Can display current, voltage, alarm and other motor parameters
Protection and monitoring Short-circuit, over-voltage, overload, under-voltage, phase loss, over-current, temperature protection
    Indoor, free from direct sunlight, dust, corrosive, flammable gases, oil mist, water vapor, dripping water or salt.
matrix Location Water vapor, dripping water or salt, etc.


altitude Altitude more than 1000m, the capacity should be reduced accordingly, every increase of 100m, the current is reduced by 0.5%.
environmental temperature -10℃~+40℃.
Above 40℃ shall be used with reduced capacity
For every increase of 1℃, the current shall be reduced by 2%.
Temperature Less than 95%RH, no water droplet condensation.
Vibration Less than 5.9m/s2(0.6g)
Storage Temperature -40℃~70℃
framework Protection class Ip20
Cooling method Radiator, natural cooling
Installation Vertical installation in cabinet





Attention:
CK70 built-in bypass intelligent soft starter adopts two kinds of start-stop control methods: panel giving and control terminal (two-wire and three-wire) giving.
1. Two-wire control is hold signal, three-wire control is trigger signal.
2. When two-wire control is adopted, panel control is invalid.
3. When three-wire control is used, panel control is effective.
4. When panel control is adopted, X3 and COM must be kept closed.
5. External pushbutton signal should be kept >200ms to be valid, <200ms to be invalid.



Motor 220v Soft Starter Squirrel Cage Bypass 0
