220v Soft Starter For Water Pumps Fans Frequency Converter

Product Details:

Place of Origin:	China
Brand Name:	Anchorwill
Certification:	3C
Model Number:	MG3

Detail Information

Place of Origin:

China

Brand Name:

Anchorwill

Certification:

Model Number:

MG3

Product Name:

Soft Starter Frequency Converter

Applicable Standards:

GB14048.6-2016(IEC60947-4-2:2011)

Applicable Motor Type:

Squirrel-cage Three-phase Asynchronous Motors

Protection And Monitoring:

Phase Failure, Operation Overcurrent

Ambient Humidity:

≤95%RH , Without Water Condensation

Motor Power:

18A ～ 1260A(7.5～630kW)

Adjustable Start Time:

1～60s Adjustable

Adjustable Stopping Time:

0～60s Adjustable

Highlight:

High Light

Highlight:

mg3 soft starters for water pumps

mg3 soft starts for water pumps

mg3 220v soft starters

Trading Information

Minimum Order Quantity:

Packaging Details:

Packing in wooden cases for export

Delivery Time:

1 - 10

Product Description

220V Soft Starter For Water Pumps Fans Frequency Converter

Product Specifications

Attribute	Value
Product name	Soft Starter Frequency Converter
Applicable standards	GB14048.6-2016(IEC60947-4-2:2011)
Applicable motor type	Squirrel-cage three-phase asynchronous motors
Protection and monitoring	Phase failure, operation overcurrent
Ambient humidity	≤95%RH, without water condensation
Motor power	18A～1260A(7.5～630kW)
Adjustable start time	1～60s adjustable
Adjustable stopping time	0～60s adjustable

Product Overview

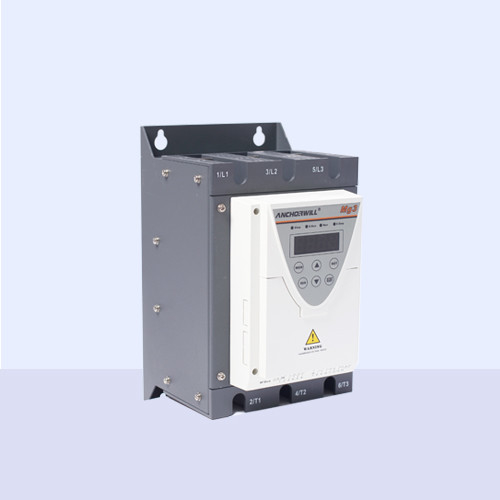

MG3 Soft Starter Frequency Converter Soft Starters For Water Pumps And Fans

Through the research and exploration of water industry applications, Ackwell has developed the Mg3 series of pump and fan-specific soft starters for the water industry, which utilizes a unique pump stopping algorithm to completely solve the "water hammer effect" and mechanical shock. The design adopts the industry-specific module approach, which can realize customized control solutions according to customer requirements, and is easy to upgrade and maintain the equipment.

Operating Environment

The altitude of the installation place is not more than 1000m above sea level; if it is more than 1000m above sea level, it should be used with reduced capacity
The ambient temperature is -10～40℃, above 40℃, it should be used at a reduced capacity, and the current should be reduced by 2% for every 1℃
Ambient humidity ≤95%RH, no water condensation
Indoors where there is no corrosive gas that destroys metal and insulating materials
No direct sunlight, no dust, flammable gas, oil mist, dripping water or salt, etc.

Item	Project Description
Applicable standards	GB14048.6-2016(IEC60947-4-2:2011)
Applicable motor type	Squirrel-cage three-phase asynchronous motors
Motor power	18A～1260A(7.5～630kW)
Input	Three-phase power supply \| AC380V:50Hz±5%
Control power supply	AC220V:50Hz±5%
Allowable Voltage Fluctuation range	Continuous voltage fluctuation not more than ±10%, short-term fluctuation not more than 15%～+10
Voltage imbalance rate	<3%; frequency: ±5%
Adjustable start time	1～60s adjustable
Adjustable stopping time	0～60s adjustable
I/O	3 logic inputs (start, stop, emergency stop)
Relay outputs	2 relay outputs (bypass, alarm (normally open, normally closed))
Run command input	LED keypad display unit given, control terminal given
Protection and monitoring	Phase failure, operation overcurrent

Selection Precautions

Fully understand the characteristics and usage of the load
The soft starter size should always be larger than the current value (rated operating current) of the motor. In case of deviation from the rated value, a larger soft starter must be selected
Installation altitude; no more than 1000 m, above 1000 m, consider capacity reduction
