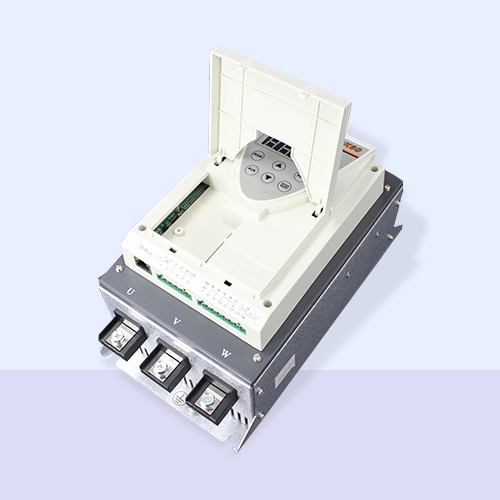

45Kw Built-In Bypass 220V Soft Starter DSP Central Processing Unit CK70
45Kw Built-In Bypass 220V Soft Starter DSP Central Processing Unit CK70
  • 45Kw Built-In Bypass 220V Soft Starter DSP Central Processing Unit CK70
  • 45Kw Built-In Bypass 220V Soft Starter DSP Central Processing Unit CK70
  • 45Kw Built-In Bypass 220V Soft Starter DSP Central Processing Unit CK70
  • 45Kw Built-In Bypass 220V Soft Starter DSP Central Processing Unit CK70

45Kw Built-In Bypass 220V Soft Starter DSP Central Processing Unit CK70

Product Details:
Place of Origin: China
Brand Name: Anchorwill
Certification: 3C
Model Number: CK70
Detail Information
Place of Origin:
China
Brand Name:
Anchorwill
Certification:
3C
Model Number:
CK70
Product Name:
Built-In Bypass Soft Starter
Applicable Standards:
GB14048.6-2016(IEC947-4-2)
Applicable Motor Type:
Squirrel-cage Three-phase Asynchronous Motors
Motor Power:
11A……1260A(5.5~630kW)
Adjustable Start Time:
1～120s Adjustable
Adjustable Stopping Time:
0～120s Adjustable
Control Mode:
1.Ramp Voltage 2.Ramp Current 3.Current Limit Mode
Protection And Monitoring:
Short-circuit, Over-voltage, Overload, Under-voltage, Phase Loss, Over-current, Temperature Protection
Highlight:

High Light

Highlight:

Bypass Soft Starter

,

DSP Soft Starter

,

220V Soft Starter

Trading Information
Minimum Order Quantity:
1
Packaging Details:
Packing in wooden cases for export
Payment Terms:
L/C, T/T, T/T
Product Description
45Kw Built-In Bypass 220V Soft Starter DSP Central Processing Unit CK70
Product Overview

The CK70 series intelligent soft starter with built-in bypass is an optimized product based on the CK60 economic soft starter, offering significantly improved performance for high-performance drive control of general machinery. Utilizing advanced power electronics technology and microprocessor technology with high-performance DSP as the central processor, it ensures real-time, superior control system performance.

This soft starter is suitable for various applications including:

  • Fans and pumps
  • Conveyor belts
  • Compressors
  • Crushers
  • Other heavy load and fast response applications
Technical Specifications
Applicable Standards GB14048.6-2016(IEC947-4-2)
Applicable Motor Type Squirrel-cage three-phase asynchronous motors
Motor Power Range 11A to 1260A (5.5~630kW)
Control Voltage AC220V±15%;50Hz/60Hz;AC110V±15%
Rated Voltage AC380V±15%;50Hz/60Hz;660V±15%
Adjustable Start Time 1～120s adjustable
Adjustable Stopping Time 0～120s adjustable
Control Modes Ramp voltage, Ramp current, Current limit mode
I/O Configuration 3 logic inputs, 1 analog output (4~20mA/0~10V), 2 relay outputs
Communication Standard Modbus protocol via RS485
Display LCD display showing current, voltage, alarm and other motor parameters
Protection Features
  • Short-circuit protection
  • Over-voltage protection
  • Overload protection
  • Under-voltage protection
  • Phase loss protection
  • Over-current protection
  • Temperature protection
Operating Environment
  • Altitude: ≤1000m (for higher altitudes, reduce capacity by 0.5% per 100m)
  • Temperature: -10℃ to +40℃ (above 40℃, reduce current by 2% per 1℃ increase)
  • Humidity: ≤95%RH (no condensation)
  • Vibration: ≤5.9m/s² (0.6g)
  • Storage Temperature: -40℃ to 70℃
  • Indoor installation without direct sunlight, dust, corrosive gases, oil mist, or dripping water
Physical Specifications
  • Protection Class: IP20
  • Cooling Method: Radiator with natural cooling
  • Installation: Vertical mounting in cabinet
45Kw Built-In Bypass 220V Soft Starter DSP Central Processing Unit CK70 0 45Kw Built-In Bypass 220V Soft Starter DSP Central Processing Unit CK70 1 45Kw Built-In Bypass 220V Soft Starter DSP Central Processing Unit CK70 2
