| Place of Origin: | China |
| Brand Name: | Anchorwill |
| Certification: | 3C |
| Model Number: | CK70 |

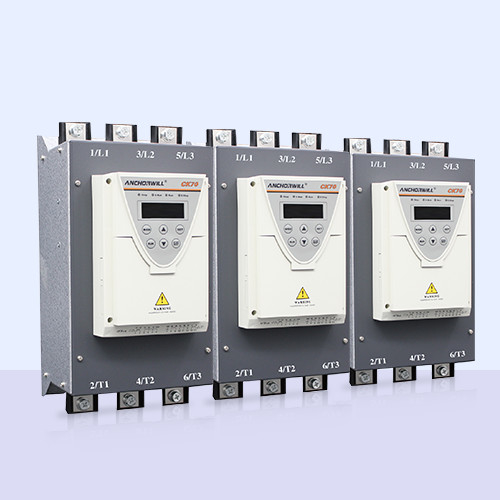

The CK70 series intelligent soft starter with built-in bypass is an optimized upgrade of the CK60 economic soft starter, offering significantly improved performance for high-performance drive control of general machinery. Utilizing advanced power electronics technology and microprocessor control with high-performance DSP as the central processor, it ensures real-time, superior control system performance.
This soft starter is ideal for various applications including:
| Applicable Standards | GB14048.6-2016(IEC947-4-2) |
| Applicable Motor Type | Squirrel-cage three-phase asynchronous motors |
| Motor Power Range | 11A-1260A (5.5-630kW) |
| Control Voltage | AC220V±15%;50Hz/60Hz;AC110V±15% |
| Rated Voltage | AC380V±15%;50Hz/60Hz;660V±15% |
| Adjustable Start Time | 1-120s adjustable |
| Adjustable Stop Time | 0-120s adjustable |
| Control Modes | Ramp voltage, Ramp current, Current limit mode |
| I/O Configuration | 3 logic inputs, 1 analog output (4-20mA/0-10V), 2 relay outputs |
| Communication | Standard Modbus protocol via RS485 |
| Display | LCD showing current, voltage, alarm and other motor parameters |
| Altitude | ≤1000m (above 1000m requires capacity reduction: 0.5% current reduction per 100m) |
| Operating Temperature | -10℃ to +40℃ (above 40℃ requires 2% current reduction per 1℃ increase) |
| Humidity | ≤95%RH (no condensation) |
| Vibration | ≤5.9m/s² (0.6g) |
| Storage Temperature | -40℃ to 70℃ |
| Protection Class | IP20 |
| Cooling Method | Radiator with natural cooling |
| Installation | Vertical installation in cabinet |
